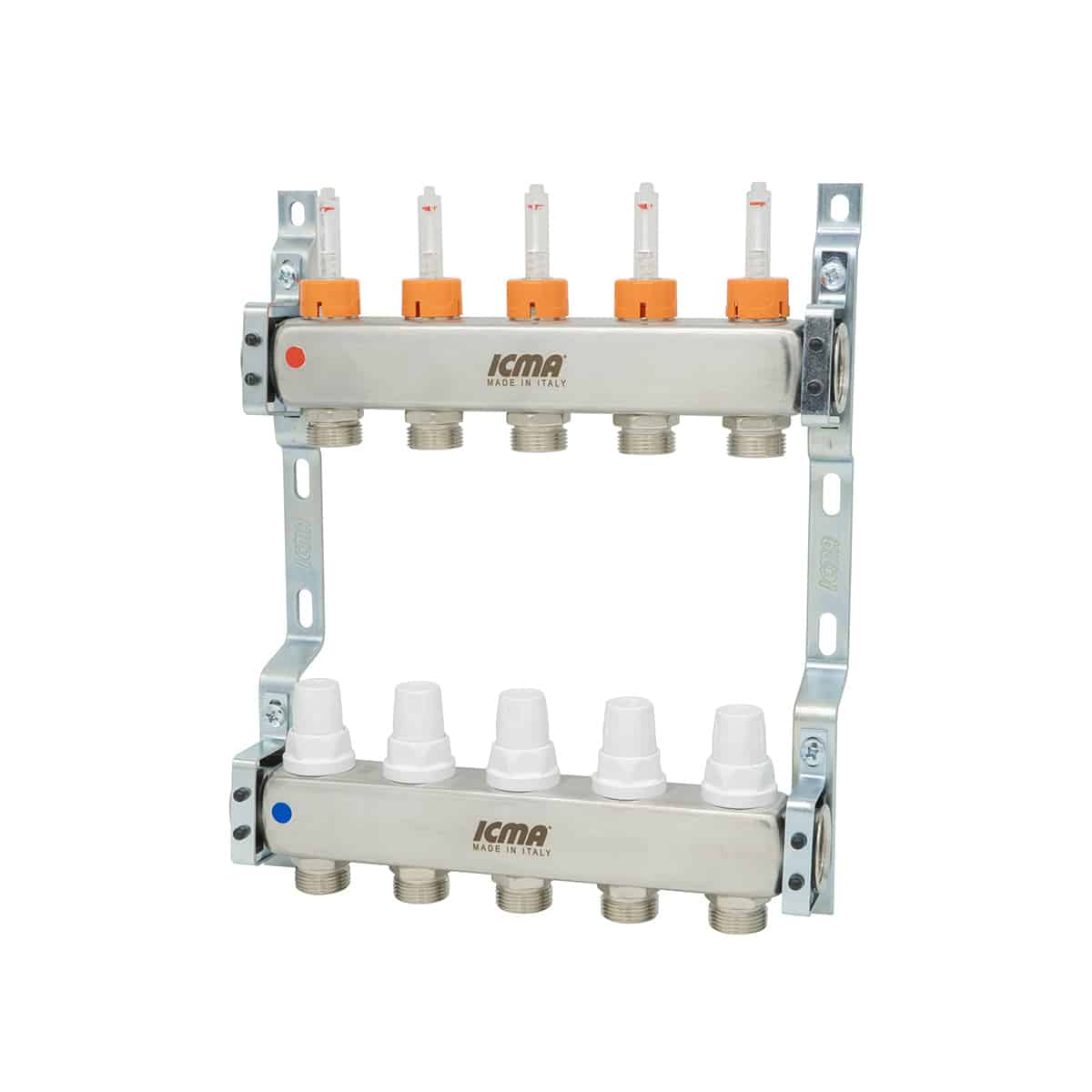

K073INV | Stainless steel manifold kit with manual/thermostatic regulation and shutoff and flow regulators
Stainless steel manifold kit with manual/thermostatic adjustment and flow meters. Mounting brackets (item 208) with anti-vibration seals. The flow regulators allow the flow path to be shut off and adjusted. Threaded connection for 3/4-inch Euroconus fittings. Select electrothermal controls with a 28×1.5 connection.
Installation guide for the M28 actuator
Codes and dimensions
| Art. | Head Connection | Outlets | Code | Connection Thread | Manifold total lenght | Cabinet recommended art. 196 |
| K073 | 1" | 2 | 87K073PG32INV | 3/4” EK. | 125 mm | 500 mm |
| K073 | 1" | 3 | 87K073PH32INV | 3/4” EK. | 175 mm | 500 mm |
| K073 | 1" | 4 | 87K073PJ32INV | 3/4” EK. | 225 mm | 500 mm |
| K073 | 1" | 5 | 87K073PQ32INV | 3/4” EK. | 275 mm | 700 mm |
| K073 | 1" | 6 | 87K073PK32INV | 3/4” EK. | 325 mm | 700 mm |
| K073 | 1" | 7 | 87K073PR32INV | 3/4” EK. | 375 mm | 700 mm |
| K073 | 1" | 8 | 87K073PL32INV | 3/4” EK. | 425 mm | 700 mm |
| K073 | 1" | 9 | 87K073PS32INV | 3/4” EK. | 475 mm | 850 mm |
| K073 | 1" | 10 | 87K073PM32INV | 3/4” EK. | 525 mm | 850 mm |
| K073 | 1” | 11 | 87K073PT32INV | 3/4” EK. | 575 mm | 850 mm |
| K073 | 1" | 12 | 87K073PU32INV | 3/4” EK. | 625 mm | 1000 mm |
| K073 | 1" | 13 | 87K073PV32INV | 3/4” EK. | 675 mm | 1000 mm |
| K073 | 1" | 14 | 87K073PW32INV | 3/4” EK. | 725 mm | 1000 mm |
| K073 | 1" | 15 | 87K073PY32INV | 3/4” EK. | 775 mm | 1000 mm |
Related products
A2K013 | Pre-assembled group for radiant panel systems with low temperature circuits
Pre-assembled group for radiant panel systems with low temperature circuits, supplied at high-temperature with fixed-point two-way mixing system. It is supplied without circulator and complete with thermostatic head 20°-50°C with remote sensor.
Choose thermostatic and electrothermic actuators with M28x1,5 connection thread.
Combinable with pumps P320, P321, P326, P327, P328, P330 (page 182).
ROHS Declaration
ROHS Declaration
K025 – K026 | Manifolds unit with memory flowmeters and valves with thermostatic option – With straight ball valve
Manifolds unit with manual/thermostatable shut-off and adjustment, with flow meters. It includes:
Includes: 2 straight ball valves (item 215), ball valve socket connection with flat-seat O-ring seal on the manifold, 2 mounting brackets (item 208) with anti-vibration seals, 2 x 1” M-F intermediate fittings with swivel connection (our item no. 204). Item no. 204 can also be fitted between the manifold and the ball valve, 2 x 3/8” automatic air vent valves (item no. 700), 2 x 1/2” water drain valves (item 172), 2 x 1” thermometer sockets with O-ring seals (item 185), 2 x 0-60° thermometers (item 206). Threaded connection for 3/4 Euroconus or M24x1.5 fittings. Select electrothermal controls with a 28x1.5 connection.
Technical datasheet
Declaration of conformity
ROHS Declaration
Technical datasheet
Declaration of conformity
ROHS Declaration
3D Models
K077 208L | Stainless steel manifold kit with manual/thermostatic regulation and shut-off and flow regulators
Stainless steel manifold kit with manual/thermostatic adjustment and
shut-off, featuring flow meters. Includes: 2 ball valves (art. 216), ball valve nozzle attachment with flat seat seal held with O-ring on the manifold, 2 fixing brackets (art. 208L) with anti-vibration gaskets, 2 automatic 3/8” air vent valves (art. 700), 2 1/2” water drain taps (art. 172). Threaded connection for 3/4-inch Euroconus fittings. Select electrothermal controls with a 28x1.5 connection.
Technical datasheet
Instruction sheet
Declaration of conformity
ROHS Declaration
Technical datasheet
Instruction sheet
Declaration of conformity
ROHS Declaration
Installation guide for the M28 actuator
K005 – K006 | Manifolds unit with adjustment lockshields and valves with thermostatic option
Manifolds unit with adjustment lockshields and valves with thermostatic option. Brackets with anti-vibration supports (art.208).
Suitable for 3/4” Euroconus or M24x1,5 fittings.
Choose electrothermic actuators with 28x1,5 connection thread.
Technical datasheet
Declaration of Conformity
ROHS Declaration
Technical datasheet
Declaration of Conformity
ROHS Declaration
K009 | Manifolds unit with adjustment lockshields and valves with thermostatic option
Manifolds unit with adjustment lockshields and valves with thermostatic option. Outlets for 1/2” air vent (art.700) and 1/2” drain cock (art.172). Brackets with anti-vibration supports (art.208).
Suitable for 3/4” Euroconus fittings.
Choose electrothermic actuators with 28x1,5 connection thread.
Technical datasheet
Declaration of Conformity
ROHS Declaration
Technical datasheet
Declaration of Conformity
ROHS Declaration
1005 – 1006 | Delivery manifold with micrometric regulation lockshields
Delivery manifold with micrometric regulation lockshields. Male outlets. Interaxe: 50 mm.
Suitable for 3/4” Euroconus or M24x1,5 fittings.
Technical datasheet
Declaration of Conformity
ROHS Declaration
Technical datasheet
Declaration of Conformity
ROHS Declaration
1007 | Return manifold with manual valves and valves with thermostatic option
Return manifold with manual valves and valves with thermostatic option. Outlets for 1/2” air vent (art.700) and 1/2” drain cock (art.172). Male outlets. Interaxe: 50 mm.
Suitable for 3/4” Euroconus fittings.
Choose thermostatic and electrothermic actuators with 28x1,5 connection thread.
Technical datasheet
Declaration of Conformity
ROHS Declaration
Technical datasheet
Declaration of Conformity
ROHS Declaration
1013 – 1014 | Delivery manifold with flowmeters
Delivery manifold with flowmeters. Male outlets. Interaxe: 50 mm.
Suitable for 3/4” Euroconus or M24x1,5 fittings.
Technical datasheet
Declaration of Conformity
ROHS Declaration
Technical datasheet
Declaration of Conformity
ROHS Declaration
