New

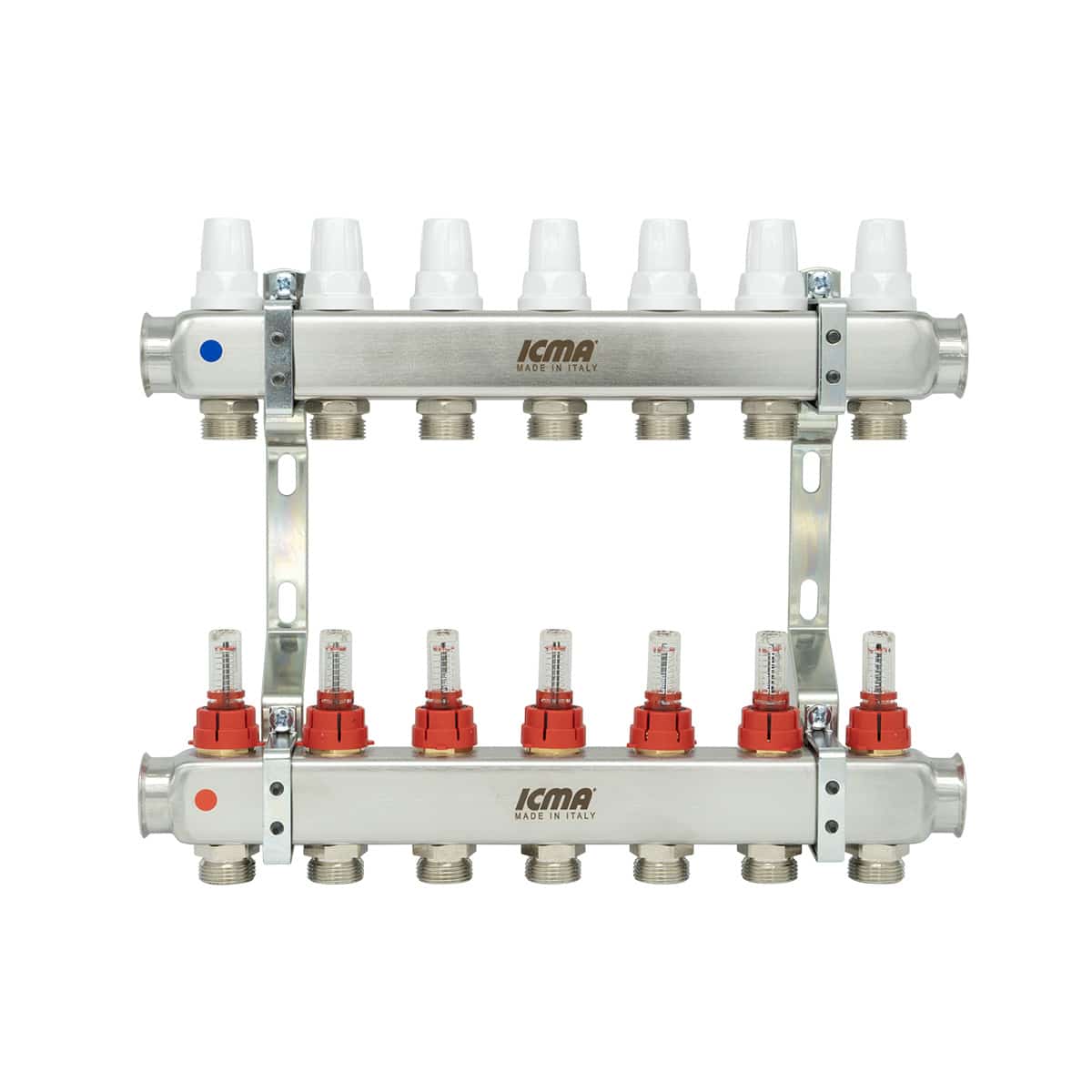

K073179 QU | Stainless steel manifolds – TACONOVA memory flowmeters – 1300 bracket
Stainless steel manifold kit with manual/thermostatic regulation and shut-off with TACONOVA flow meters.
Includes: 2 ball valves (art. 216), ball valve union connection with flat seat gasket and O-ring seal on the manifold, 2 mounting brackets (art. 1300) with anti-vibration gaskets, 2 3/8” manual air vent valves (art. 701), 2 1/2” drain cocks (art. 172). Suitable for 3/4” Euroconus fittings. Select electrothermal controls with a 28×1.5 connection.
Installation guide for the M28 actuator
Codes and dimensions
| Art. | Head Connection | Outlets | Code | Thread connection | Manifold total lenght | Cabinet recommended Art. 196 |
| K073 | 1" | 2 | 87K073179PG32QU | 3/4” EK. | 125 mm | 500 mm |
| K073 | 1" | 3 | 87K073179PH32QU | 3/4” EK. | 175 mm | 500 mm |
| K073 | 1" | 4 | 87K073179PJ32QU | 3/4” EK. | 225 mm | 500 mm |
| K073 | 1" | 5 | 87K073179PQ32QU | 3/4” EK. | 275 mm | 700 mm |
| K073 | 1" | 6 | 87K073179PK32QU | 3/4” EK. | 325 mm | 700 mm |
| K073 | 1" | 7 | 87K073179PR32QU | 3/4” EK. | 375 mm | 700 mm |
| K073 | 1" | 8 | 87K073179PL32QU | 3/4” EK. | 425 mm | 700 mm |
| K073 | 1" | 9 | 87K073179PS32QU | 3/4” EK. | 475 mm | 850 mm |
| K073 | 1" | 10 | 87K073179PM32QU | 3/4” EK. | 525 mm | 850 mm |
| K073 | 1” | 11 | 87K073179PT32QU | 3/4” EK. | 575 mm | 850 mm |
| K073 | 1" | 12 | 87K073179PU32QU | 3/4” EK. | 625 mm | 1000 mm |
| K073 | 1" | 13 | 87K073179PV32QU | 3/4” EK. | 675 mm | 1000 mm |
| K073 | 1" | 14 | 87K073179PW32QU | 3/4” EK. | 725 mm | 1000 mm |
| K073 | 1" | 15 | 87K073179PY32QU | 3/4” EK. | 775 mm | 1000 mm |
