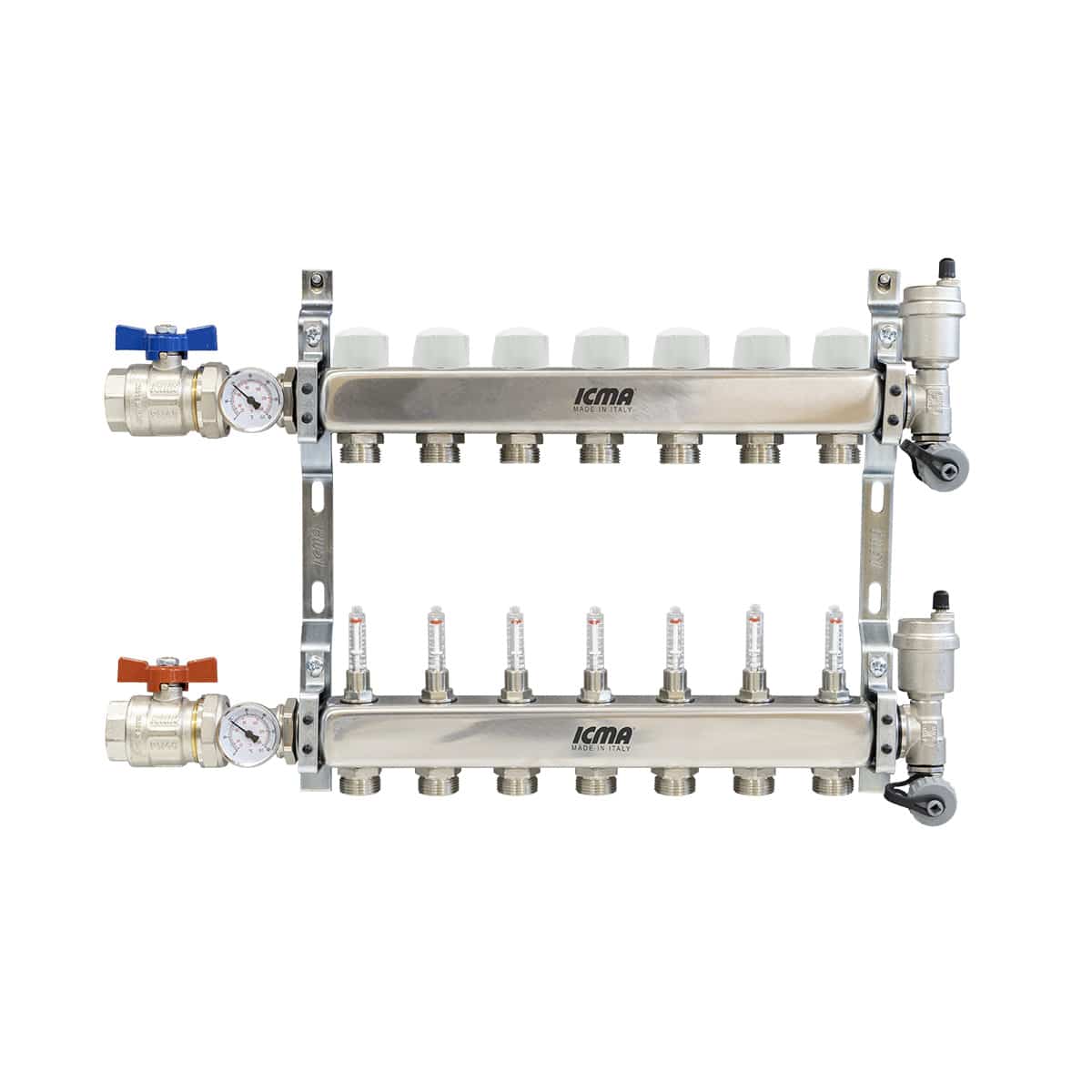

K078 | Stainless steel manifold kit with manual/thermostatic regulation and shut-off and flow regulators
Stainless steel manifold kit with manual/thermostatic regulation and shut-off and flow regulators. It includes: N° 2 ball valves (art. 216); Shut-off ball valves with o-ring sealed pipe union; N° 2 fixing brackets (art.208) with anti-vibration seals; N° 2 3/8” automatic air vent valves (art. 700); N° 2 1/2” drain valves (art. 172);
Suitable for 3/4” Euroconus fittings. Compatible with thermostatic and electrothermic actuators with 30×1,5. Suitable for electrothermal actuators ICMA M30, Innoakt INN920066PL, Taconova NOVADRIVE 257.2855.000, Taconova TOPDRIVE 257.2055.000, Caleffi 656102 (4 wires), Siemens STA321.65L10, Imi hydronic Emo-t and Intellisys MCA230 (4 wires), Danfoss 088H3220.
0
People watching this product now!
Codes and dimensions
| Art. | Head connection size | Outlets | Code | Thread connection | Manifold total length | Suggested box art. 196 |
| K078 | 1” | 2 | 87K078PG32 | 3/4” EK. | 285 mm | 500 mm |
| K078 | 1” | 3 | 87K078PH32 | 3/4” EK. | 335 mm | 500 mm |
| K078 | 1” | 4 | 87K078PJ32 | 3/4” EK. | 385 mm | 500 mm |
| K078 | 1” | 5 | 87K078PQ32 | 3/4” EK. | 435 mm | 700 mm |
| K078 | 1” | 6 | 87K078PK32 | 3/4” EK. | 485 mm | 700 mm |
| K078 | 1” | 7 | 87K078PR32 | 3/4” EK. | 535 mm | 700 mm |
| K078 | 1” | 8 | 87K078PL32 | 3/4” EK. | 585 mm | 700 mm |
| K078 | 1” | 9 | 87K078PS32 | 3/4” EK. | 635 mm | 850 mm |
| K078 | 1” | 10 | 87K078PM32 | 3/4” EK. | 685 mm | 850 mm |
| K078 | 1” | 11 | 87K078PT32 | 3/4” EK. | 735 mm | 850 mm |
| K078 | 1” | 12 | 87K078PU32 | 3/4” EK. | 785 mm | 1000 mm |
| K078 | 1” | 13 | 87K078PV32 | 3/4” EK. | 835 mm | 1000 mm |
| K078 | 1” | 14 | 87K078PW32 | 3/4” EK. | 885 mm | 1200 mm |
| K078 | 1” | 15 | 87K078PY32 | 3/4” EK. | 935 mm | 1200 mm |
