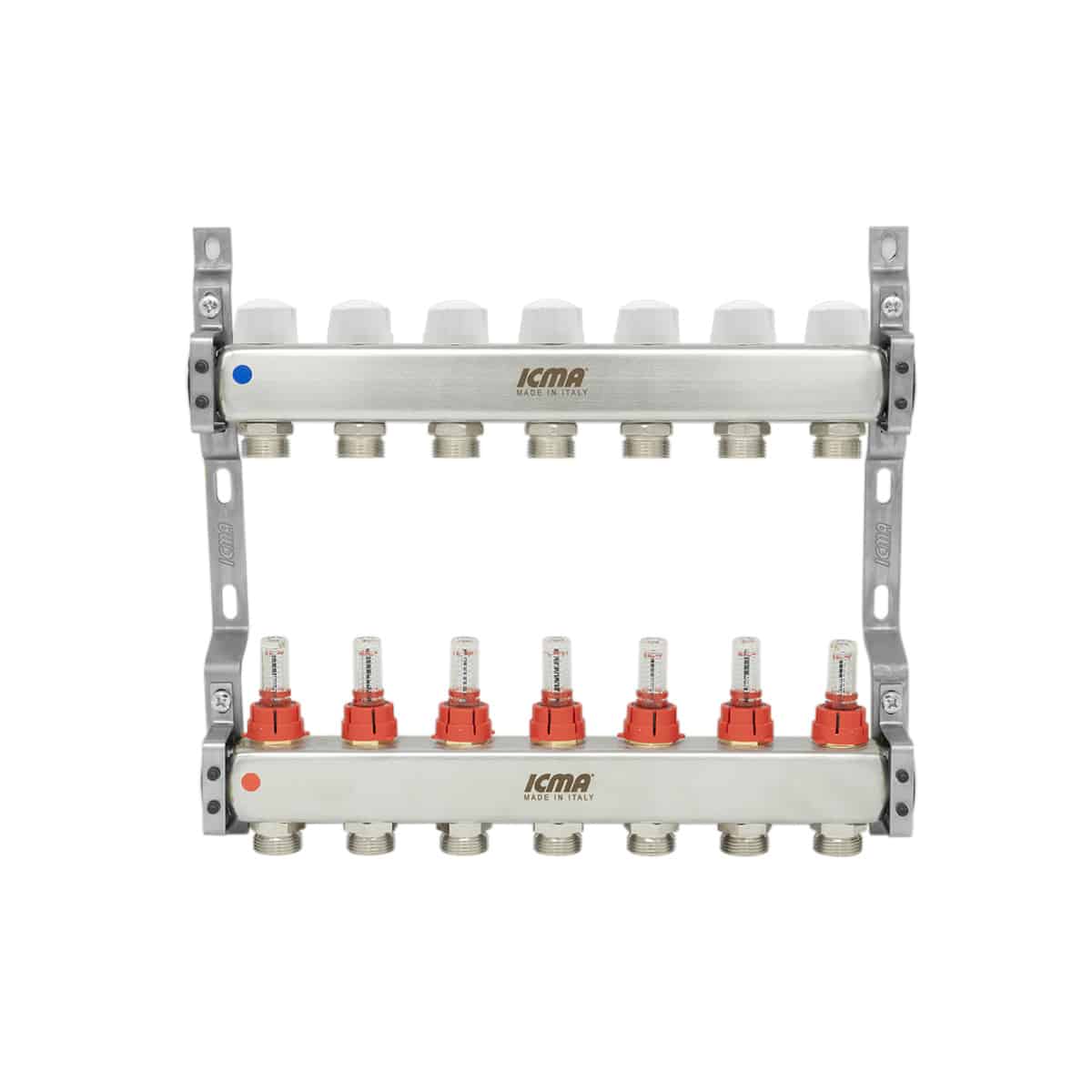

K074179 208L | Stainless steel manifold – TACONOVA Flowmeter – Brackets 208L – M30
Stainless steel manifolds unit with TACONOVA memory flowmeters and valves with thermostatic option.
connection to the ball valve with gasket with plane seat and o-ring, 2 brackets (art.208L) with anti-vibration supports , 2 3/8” automatic air vents (art. 700), 2 1/2” drain cocks (art. 172). Suitable for 3/4” Euroconus. Choose thermostatic and electrothermic actuators with 30×1,5 connection thread. Compatible with thermostatic and electrothermic actuators with 30×1,5. Suitable for electrothermal actuators ICMA M30, Innoakt INN920066PL, Taconova NOVADRIVE 257.2855.000, Taconova TOPDRIVE 257.2055.000, Caleffi 656102 (4 wires), Siemens STA321.65L10, Imi hydronic Emo-t and Intellisys MCA230 (4 wires), Danfoss 088H3220.
0
People watching this product now!
Codes and dimensions
| Art. | Head connection size | Outlets | Code | Thread connection | Manifold total length |
| K074 | 1" | 2 | 87K074179PG32L | 3/4” EK. | 125 mm |
| K074 | 1" | 3 | 87K074179PH32L | 3/4” EK. | 175 mm |
| K074 | 1" | 4 | 87K074179PJ32L | 3/4” EK. | 225 mm |
| K074 | 1" | 5 | 87K074179PQ32L | 3/4” EK. | 275 mm |
| K074 | 1" | 6 | 87K074179PK32L | 3/4” EK. | 325 mm |
| K074 | 1" | 7 | 87K074179PR32L | 3/4” EK. | 375 mm |
| K074 | 1" | 8 | 87K074179PL32L | 3/4” EK. | 425 mm |
| K074 | 1" | 9 | 87K074179PS32L | 3/4” EK. | 475 mm |
| K074 | 1" | 10 | 87K074179PM32L | 3/4” EK. | 525 mm |
| K074 | 1” | 11 | 87K074179PT32L | 3/4” EK. | 575 mm |
| K074 | 1" | 12 | 87K074179PU32L | 3/4” EK. | 625 mm |
| K074 | 1" | 13 | 87K074179PV32L | 3/4” EK. | 675 mm |
| K074 | 1" | 14 | 87K074179PW32L | 3/4” EK. | 725 mm |
| K074 | 1" | 15 | 87K074179PY32L | 3/4” EK. | 775 mm |
Related products
K031 – K032 | Kit collettori – Regolazione ed intercettazione manuale/termostatizzabile – Con valvola a squadra
Manifolds unit with memory flowmeters and valves with thermostatic option.
It includes: 2 ball valves (art.225), connection to the ball valve with gasket with plane seat and o-ring, 2 brackets (art.208) with anti-vibration supports, 2 1/2” automatic air vents (art.700), 2 1/2” drain cocks (art.172), 2 1” thermometer caps with o-ring (art.185), 2 0-60° thermometers (art.206).
Suitable for 3/4” Euroconus or M24x1,5 fittings.
Choose thermostatic and electrothermic actuators with 28x1,5 connection thread.
Technical datasheet
Technical datasheet
K073 | Stainless steel manifold kit with manual/thermostatic regulation and shutoff and flow regulators
Stainless steel manifold kit with manual/thermostatic regulation and shutoff and flow regulators. The flow regulators allow to close and regulate
the flow. It includes: N° 2 fixing brackets (art.208) with anti-vibration seals; Suitable for 3/4” Euroconus fittings. Choose thermostatic and
electrothermal actuators with 28×1,5 connection thread.
Technical datasheet
Instruction sheet
Declaration of conformity
Technical datasheet
Instruction sheet
Declaration of conformity
K079 | Stainless steel manifold kit with manual/thermostatic regulation
Stainless steel manifold kit with manual/thermostatic regulation. It includes: N° 2 ball valves (art. 216); Shut-off ball valves with o-ring sealed pipe union; N° 2 fixing brackets (art.208) with anti-vibration seals; N° 2 3/8” manual air vent valves (art. 701); N° 2 1/2” drain valves (art. 172);
Suitable for 3/4” Euroconus fittings. Choose thermostatic and electrothermal actuators with 28×1,5 connection thread.
Technical datasheet
Instruction sheet
Declaration of conformity
Technical datasheet
Instruction sheet
Declaration of conformity
K023 | Manifolds unit with memory flowmeters and valves with thermostatic option – With straight ball valve
Manifolds unit with memory flowmeters and valves with thermostatic option. It Includes: 2 ball valves (art. 215), connection to the ball valve with gasket with flat seat and o-ring, 2 brackets (art.208) with anti-vibration supports, 2 built-in manual air vents with o-ring (art.705), 2 1/2” drain cocks (art.172), 2 1” thermometer caps with o-ring (art.185), 2 0-60° thermometers (art.206).
Suitable for 3/4” Euroconus fittings.
Choose thermostatic and electrothermic actuators with 28x1,5 connection thread.
Technical datasheet
Declaration of Conformity
Technical datasheet
Declaration of Conformity
K023 | Manifolds unit with memory flowmeters and valves with thermostatic option – With angle ball valve
Manifolds unit with memory flowmeters and valves with thermostatic option. It Includes: 2 ball valves (art.225), connection to the ball valve with gasket with flat seat and o-ring, 2 brackets (art.208) with anti-vibration supports, 2 built-in manual air vents with o-ring (art.705), 2 1/2” drain cocks (art.172), 2 1” thermometer caps with o-ring (art.185), 2 0-60° thermometers (art.206).
Suitable for 3/4” Euroconus fittings.
Choose thermostatic and electrothermic actuators with 28x1,5 connection thread.
Technical datasheet
Technical datasheet
1007 | Return manifold with manual valves and valves with thermostatic option
Return manifold with manual valves and valves with thermostatic option. Outlets for 1/2” air vent (art.700) and 1/2” drain cock (art.172). Male outlets. Interaxe: 50 mm.
Suitable for 3/4” Euroconus fittings.
Choose thermostatic and electrothermic actuators with 28x1,5 connection thread.
Technical datasheet
Declaration of Conformity
Technical datasheet
Declaration of Conformity
1013 – 1014 | Delivery manifold with flowmeters
Delivery manifold with flowmeters. Male outlets. Interaxe: 50 mm.
Suitable for 3/4” Euroconus or M24x1,5 fittings.
Technical datasheet
Declaration of Conformity
Technical datasheet
Declaration of Conformity
TP01 | Compact thermoplastic manifold for underfloor heating and cooling systems
The article TP01 is the Icma single molded manifold studied and produced for underfloor heating and cooling systems. The supply segment is equipped with a flow meter regulator valve.
By means of this regulator valve, every circuit flow rates can be regulated at the desired value with precision.
When necessary, this valve allows hermetic closing of single circuits.
The manifold is full of a special inlet group including ball valve, thermometer and drain valve.
The manifold is easy to install in small spaces (box with 80 mm. depth) thanks to its extremely size.
The return segment is equipped with built-in-shut-off valves. Valves have been designed for application with electro-thermal control.
Choose electrotermic actuator art. 977, art. 980 (normally open version).
Technical datasheet
Technical datasheet
