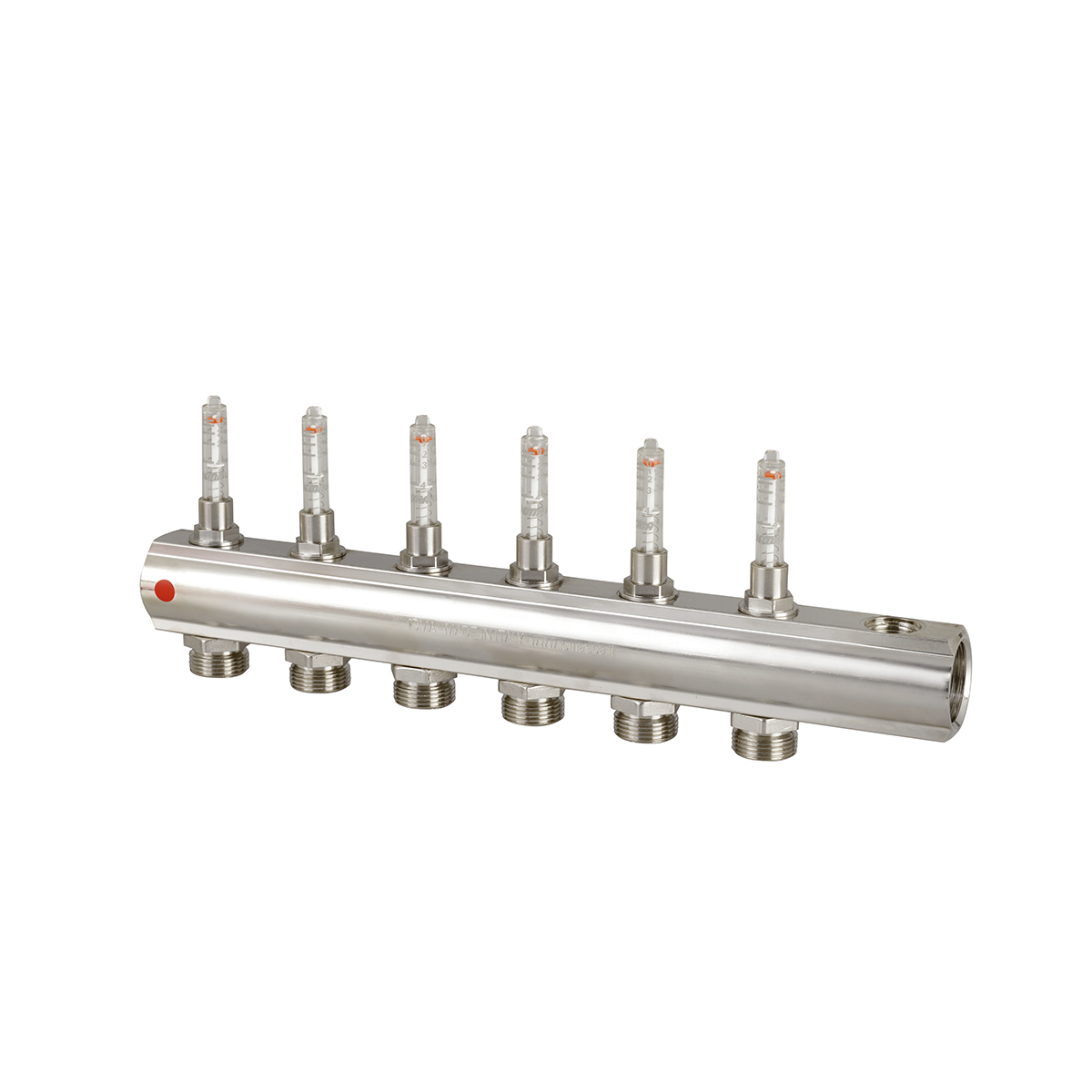

1015 | Delivery manifold with flowmeters
Delivery manifold with flowmeters. Outlets for 1/2” air vent (art.700) and 1/2” drain cock (art.172). Male outlets. Interaxe: 50 mm.
Suitable for 3/4” Euroconus fittings.
Codes and dimensions
| Art. | Head connection | Outlets | Code | Fitting thread |  |
| 1015 | 1" | 2 | 871015PG06 | 3/4” EK. | 1 |
| 1015 | 1" | 3 | 871015PH06 | 3/4” EK. | 1 |
| 1015 | 1" | 4 | 871015PJ06 | 3/4” EK. | 1 |
| 1015 | 1" | 5 | 871015PQ06 | 3/4” EK. | 1 |
| 1015 | 1" | 6 | 871015PK06 | 3/4” EK. | 1 |
| 1015 | 1" | 7 | 871015PR06 | 3/4” EK. | 1 |
| 1015 | 1" | 8 | 871015PL06 | 3/4” EK. | 1 |
| 1015 | 1" | 9 | 871015PS06 | 3/4” EK. | 1 |
| 1015 | 1" | 10 | 871015PM06 | 3/4” EK. | 1 |
| 1015 | 1" | 11 | 871015PT06 | 3/4” EK. | 1 |
| 1015 | 1" | 12 | 871015PU06 | 3/4” EK. | 1 |
| 1015 | 1" | 13 | 871015PV06 | 3/4” EK. | 1 |
| 1015 | 1" | 14 | 871015PW06 | 3/4” EK. | 1 |
| 1015 | 1"1/4 | 2 | 871015DG06 | 3/4” EK. | 1 |
| 1015 | 1"1/4 | 3 | 871015DH06 | 3/4” EK. | 1 |
| 1015 | 1"1/4 | 4 | 871015DJ06 | 3/4” EK. | 1 |
| 1015 | 1"1/4 | 5 | 871015DQ06 | 3/4” EK. | 1 |
| 1015 | 1"1/4 | 6 | 871015DK06 | 3/4” EK. | 1 |
| 1015 | 1"1/4 | 7 | 871015DR06 | 3/4” EK. | 1 |
| 1015 | 1"1/4 | 8 | 871015DL06 | 3/4” EK. | 1 |
| 1015 | 1"1/4 | 9 | 871015DS06 | 3/4” EK. | 1 |
| 1015 | 1"1/4 | 10 | 871015DM06 | 3/4” EK. | 1 |
| 1015 | 1"1/4 | 11 | 871015DT06 | 3/4” EK. | 1 |
| 1015 | 1"1/4 | 12 | 871015DU06 | 3/4” EK. | 1 |
| 1015 | 1"1/4 | 13 | 871015DV06 | 3/4” EK. | 1 |
| 1015 | 1"1/4 | 14 | 871015DW06 | 3/4” EK. | 1 |
