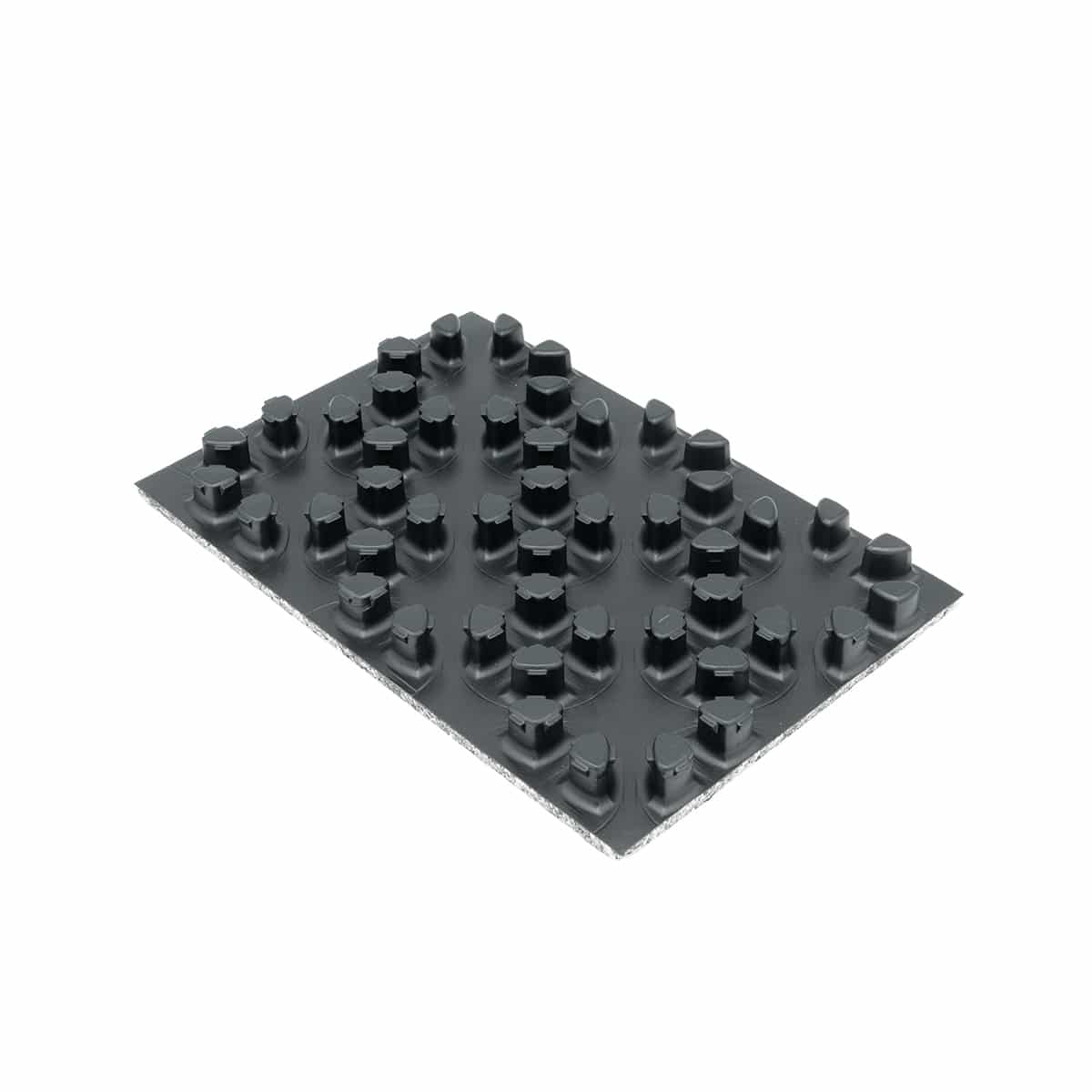

P115 | Thermoformed insulating panel – 50mm pipe laying pitch

Thermoformed insulation panel in sintered expanded polystyrene with graphite additive. 0,030 W/mk thermal conductivity, CE marked in compliance with EN 13163 standard, complete with thermoformed laminate shell with a thickness of 600 microns and 22mm embossed reliefs. Suitable for pipes with 16mm. and 17 mm. external diameter; installation pitch 50mm and multiple sizes, complete with lateral overlapping edges to join the panels during the concrete slab creation. Technical datasheet Declaration of conformity

Thermal and acoustic insulating panel in EPS pre-formed sintered expanded polystyrene foam with double density (EPS200 + stretch), in compliance with EN 13163 Annex ZA standard. It is provided with a 600 micron walkable thermoformed shell with 22 mm reliefs. The edges are overlapping to joint the panels firmly. 50 mm pitch and multiple circuits. Suitable for 16-17 mm pipe. Technical datasheet Declaration of conformity

Lowered panel with hollow reliefs in recycled plastic, no insulation, including an adhesive film for application on existing floor. The hollow reliefs allow the surface screed to wrap the panel, thus calculating the thickness of the screed from the base of the insulating panel and making it sufficient a height above the panel of only 10 mm. Created to meet the growing demand for reduced thickness underfloor heating systems. Benefits: • Ideal for renovations • Ideal for self-levelling screeds • Low thickness • Low thermal inertia Suitable for 16mm and 12mm pipe; 50 mm pitch and multiple circuits. Technical datasheet

Flat insulating panel in rolls in EPS sintered expanded polystyrene foam, CE marked in compliance with UNI EN 13163 standard, laminated with a reflective film with a squared framework for providing 50 mm pitch and multiple circuits and with adhesive edges to fix the panels. Suitable for 16-17-20 mm pipe. Technical datasheet
